NVIDIA GeForce 8800 GT upgrade for first generation Mac Pro

Thomas Alexnat - 22. April 2008

Today I received the graphics update for my first generation Mac Pro. The card works silent and fine. Read here about my impressions and my quick test with XBench.

What a surprise: Apple finallay managed to roll out the midrange 8800GT graphics card from NVIDIA. I´m upgrading from the ATI X1900XT which was also a nice card for the Mac Pro and has still decent performance when it comes to Apples Pro applications like Final Cut.

Installation

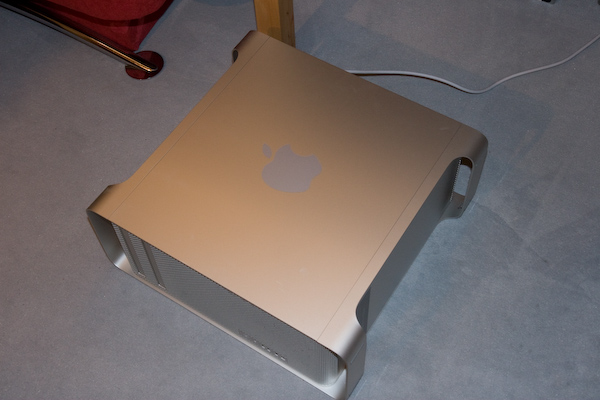

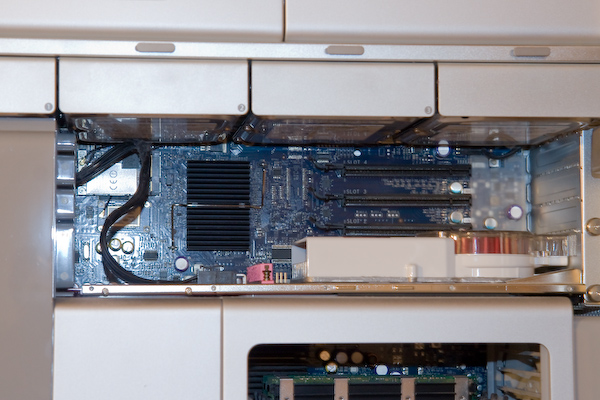

As a version junkie my Mac OS X is uptodate and I decided not to make a backup. Usually I prefer manual backups but in this case I only trusted in Timemachine. So I opened up my Mac Pro as described in the nice graphics card manual. Disconnecting the power cable from the old X1900XT was no problem.

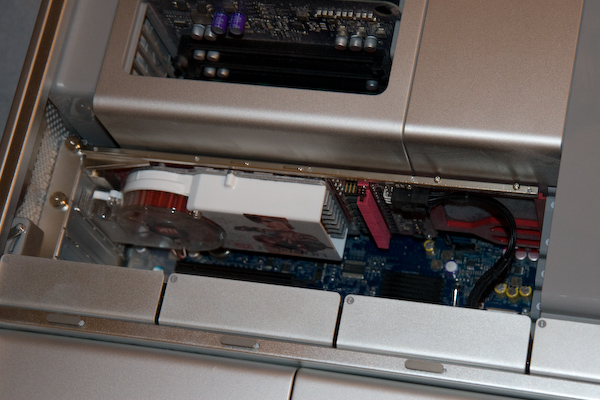

Unfortunally the cool Mac Pros' PCI holder was quite hard to open. Normally you can use your fingers to unscrew the clip, but I had to use a screwdriver. After this small action of force I released the PCI-Express latch und pulled gently the ATI card.

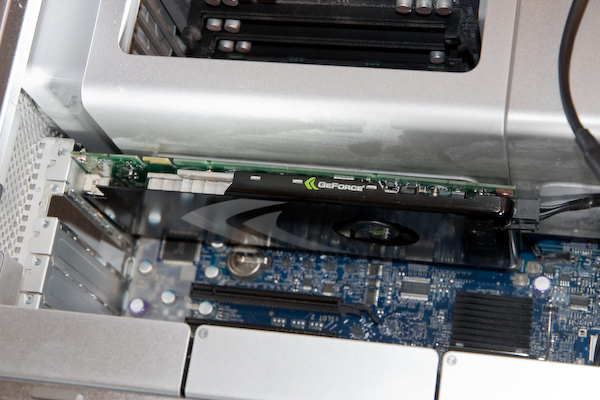

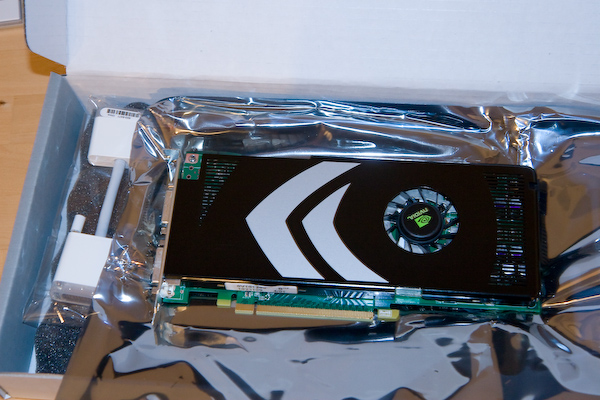

The new 8800 GT is much smaller than the old X1900XT and fits nice into the exansion slot. Unfortunally there is now an open PCI slot holder, because the 8800GT is half the height. What a pitty for such a nice designed machine. I´m getting a new slot cover.
To make it short: The installation was easy.

Windows

The 8800GT works fine under Windows XP 32-Bit although I had to install the current NVIDIA forceware drivers in Version 174.93 beta to get the new card recognized.

Crysis

The high demanding shooter Crysis plays fine with all settings 'high' in 1600x1200. Activating antialiasing slows down the performance. So I guess the 8800GT is not ready for full native resolution on 30" displays. Currently I´m still using my old Iymaha S-IPS 21" monitor.

Mac OS X Performance and XBench

I just fired up XBench and ran the standard graphics test. As already discovered the 8800GT seems to perform slower in this OpenGL test, but the gaming experience under Windows tells a different story. However the card feels fast under OS X and perhaps other people will perform real performance tests.

Bottom line

The NVIDIA GeForce 8800 GT is the graphics upgrade for the first generation Mac Pros and works like a charm. Enjoy!

XBench 1.3: NVIDIA GeForce 8800 GT


	System Info

		Xbench Version		1.3

		System Version		10.5.2 (9C7010)

		Physical RAM		2048 MB

		Model		MacPro1,1

		Drive Type		SAMSUNG HD401LJ

	Quartz Graphics Test	208.48

		Line	185.33	12.34 Klines/sec [50% alpha]

		Rectangle	253.37	75.64 Krects/sec [50% alpha]

		Circle	207.71	16.93 Kcircles/sec [50% alpha]

		Bezier	203.70	5.14 Kbeziers/sec [50% alpha]

		Text	203.37	12.72 Kchars/sec

	OpenGL Graphics Test	169.66

		Spinning Squares	169.66	215.22 frames/sec

	User Interface Test	307.94

		Elements	307.94	1.41 Krefresh/sec

XBench 1.3: ATI X1900XT


	System Info

		Xbench Version		1.3

		System Version		10.5.2 (9C31)

		Physical RAM		2048 MB

		Model		MacPro1,1

		Drive Type		SAMSUNG HD401LJ

	Quartz Graphics Test	208.75

		Line	184.98	12.32 Klines/sec [50% alpha]

		Rectangle	254.40	75.95 Krects/sec [50% alpha]

		Circle	207.19	16.89 Kcircles/sec [50% alpha]

		Bezier	204.17	5.15 Kbeziers/sec [50% alpha]

		Text	204.47	12.79 Kchars/sec

	OpenGL Graphics Test	249.07

		Spinning Squares	249.07	315.96 frames/sec

	User Interface Test	323.22

		Elements	323.22	1.48 Krefresh/sec
